Product Features:
Based on the system configuration, it is divided into three prefabricated modules: the high-voltage module unit, the main transformer module unit, and the low-voltage module unit.
The high-voltage module unit consists of a flame-retardant, thermally insulated, and shielded enclosure equipped with high-voltage switchgear. The main transformer module unit comprises a flame-retardant, thermally insulated, and shielded enclosure housing the main transformer. The low-voltage module unit includes a flame-retardant, thermally insulated, and shielded enclosure containing medium-voltage switchgear, secondary control and protection equipment, and auxiliary power equipment. These units are interconnected via cables to form a complete substation system.
Fast – Factory production cycle of 3 months, on-site construction period of 1 month.
Compact – Occupies a small footprint, reducing land use by 30%-70% compared to conventional substations.
Precise – The enclosure employs an internationally advanced six-step anti-corrosion process, ensuring no rust for 30 years and a service life of 60 years. Key electrical equipment is maintenance-free, ensuring safety and reliability. Exceptional processing craftsmanship and refined exterior design.
Economical – Standardized design, factory processing, and assembly-style construction reduce overall station investment by 5%-10%. The compact layout of the substation, combined with advanced integrated system technology, saves 30%-70% of land resources.
Flexible – Modular building-block structure allows flexible assembly based on geographical conditions of the site, as well as phased construction for short-term and long-term planning. Easily relocatable, enabling rapid dismantling and reconstruction at a new location.
Scope of Application:
This product is not only suitable for urban central areas, addressing the challenges of installing conventional substations, but also widely used in traditional energy industries such as coal and oil, as well as renewable energy sectors like photovoltaic and wind power. Thanks to its modular "building-block" design, production, transportation, and assembly模式, it is particularly ideal for locations with limited transportation access, such as suburban and remote mountainous areas.
Product Track Record:

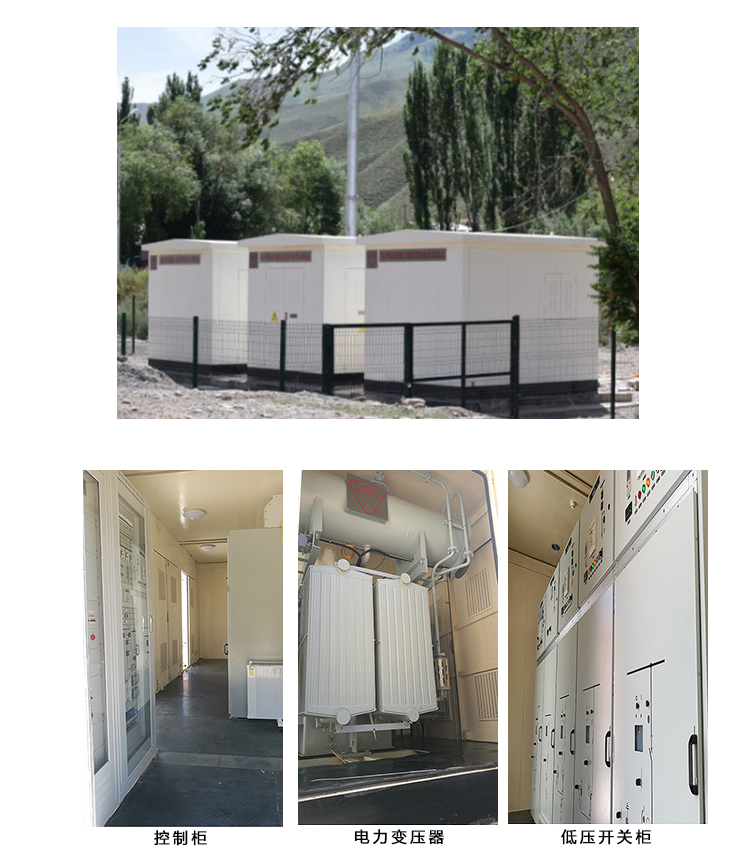

In 2015, a prefabricated substation was supplied for the Naryn Campus of the Central Asian University in Kyrgyzstan. To this day, the prefabricated substation remains in operation.
